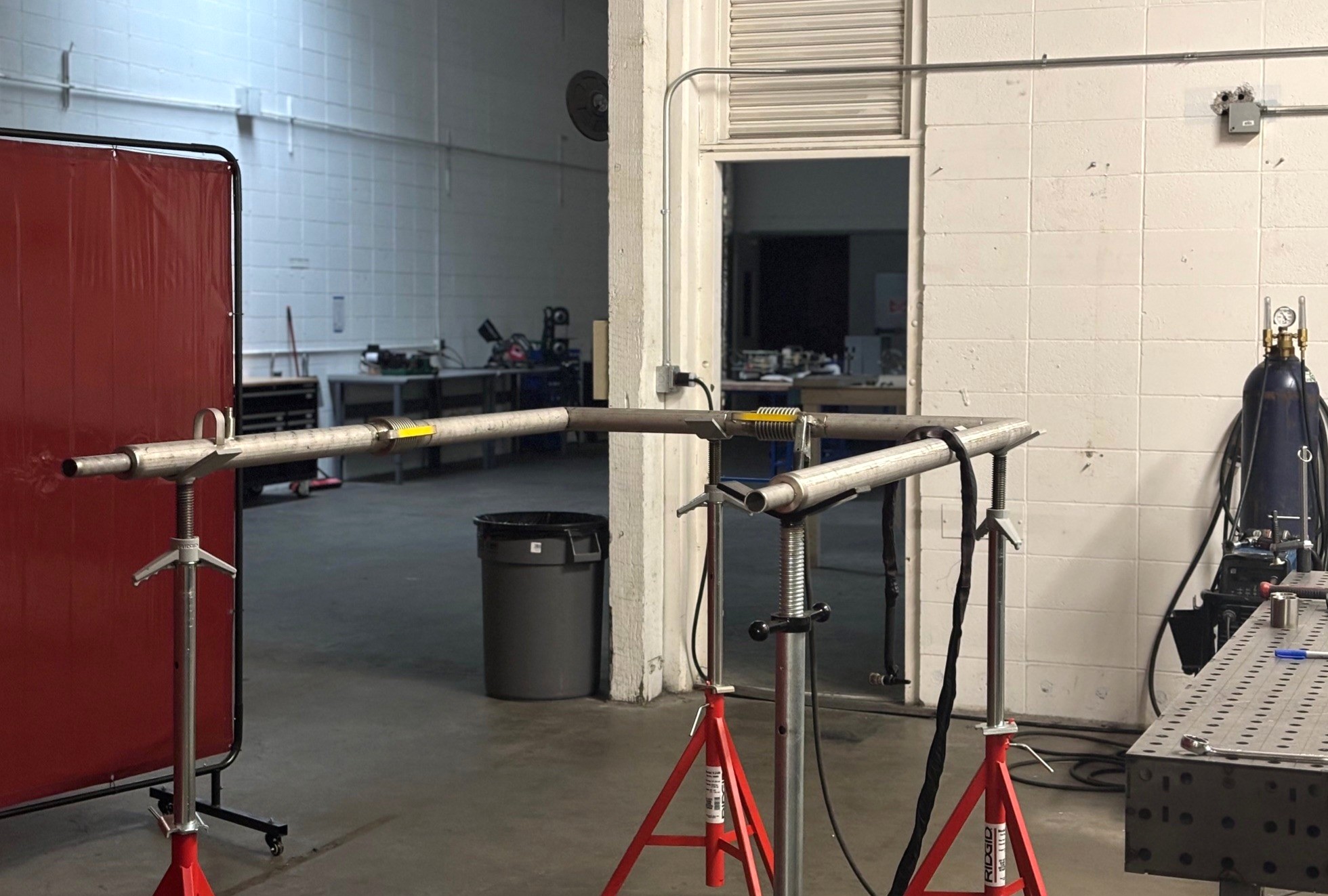

Vacuum Jacketed Piping:

Spaceline engineers and fabricates Vacuum Jacketed piping to customer specifications:

• Most thermally efficient piping design for a cryogenic system.
• Over 20 year design life.
• Designed, fabricated and tested to ASME B31.3.
• Inner pipe sizes from 1/2" to 12".
• Working pressures to 6000 psig.
• Liquid Oxygen
• Liquid Nitrogen
• Liquid Argon
• Liquid Helium
• Liquid Hydrogen
• Qualified weld procedures to ASME Section IX and charpy impact tested to -452°F.

Precision-Focused

Our engineering team can provide a turn-key piping design and flexibility analysis compliant with ASME code.

Our systems are custom-engineered to meet the specific demands of your facility layout and fluid requirements.

Specifications:

• Standard Inner Pipe Materials: 304L/316L
• Internal or external expansion joints.
• Rigid and Flexible configurations.
• End Connections to customer requirements.
• All pipes go through a vacuum bake out and helium leak detection process before shipment.
