Cryogenic Systems
Spaceline manufactures mobile supply trailers and vacuum jacketed piping for cryogenic systems.
Mobile Cryogenic Gas and Liquid Supply:
Spaceline offers an engineered mobile cryogenic system designed to supply either liquid or gaseous fluid to the customer.
This product is configureable for the specific application and fabricated by Spaceline to customer specifications.
This product is configureable for the specific application and fabricated by Spaceline to customer specifications.
Standard Features:
- Vacuum Insulated Tank.
- ASME and DOT rated.
- 5000 gallon tank.
- Stainless supply piping.
- Valve and Instrumentation Package.
- Full Aluminum trailer.
- Liquid Nitrogen, Liquid Oxygen, Liquid Argon.
Options
- Liquid Hydrogen.
- Custom automation and controls.
- Custom vaporizer capacities.
- Vacuum Insulated Piping.
- Flow Control and measurement.
- Pump Package.
- Standalone Generator.
- Different Tank Volume Capacities.

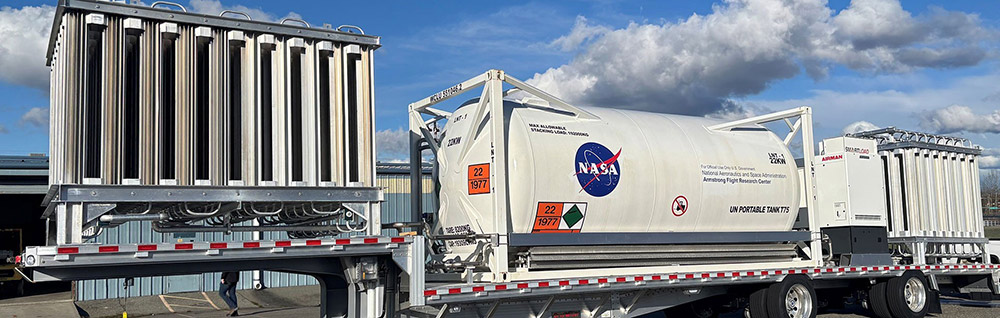

Spaceline designed and manufactured the above mobile cryogenic trailer for NASA Armstrong Flight Research Center.
Vacuum Jacketed Piping:
Spaceline engineers and fabricates Vacuum Jacketed piping to customer specifications:
- Most thermal efficient piping design for a cryogenic system.
- Over 20 year design life.
- Designed, fabricated and tested to ASME B31.3.
- Liquid Oxygen
- Liquid Nitrogen
- Liquid Argon
- Liquid Helium
- Liquid Hydrogen
- Qualified weld procedures to ASME Section IX.
Precision-Focused
Our engineering team can provide a turn-key piping design and flexibility analysis compliant with ASME code.Our systems are custom-engineered to meet the specific demands of your facility layout and fluid requirements.
Specifications:
- Standard Inner Pipe Materials: 304L/316L
- Internal or external expansion joints.
- Rigid and Flexible configurations.
- End Connections to customer requirements.
- All pipes go through a vacuum bake out and helium leak detection process before shipment.
Configure Your Cryogenic System
Discuss mobile cryogenic supply systems, vacuum jacketed piping, and custom configurations engineered for your facility and fluid requirements.
